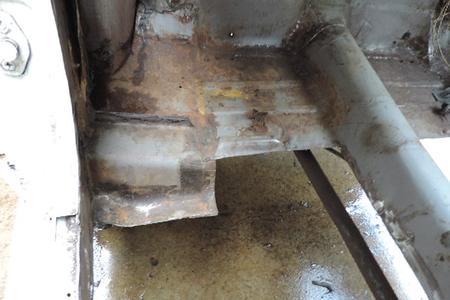

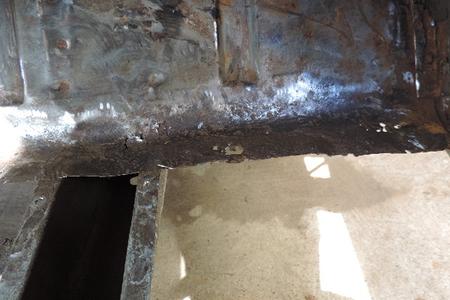

The passenger side toe board bottom will need a new patch made.

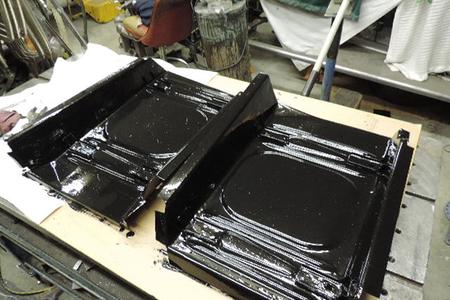

Bottom side of the seat pans coated with rust preventive paint.

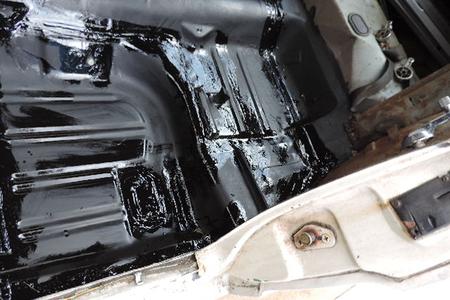

All the welds were coated with rust preventative paint top & underside and seam sealed.

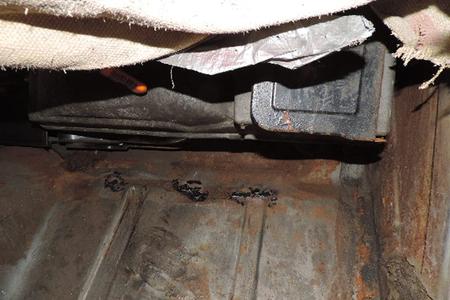

The toe board up under the heater core needed some minor patch work.

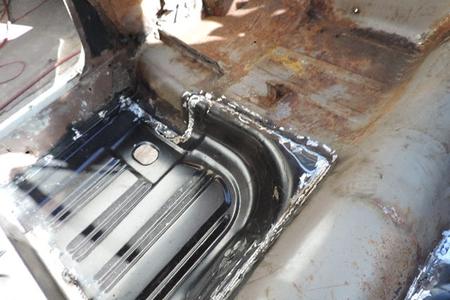

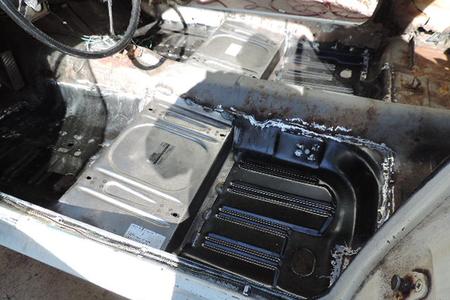

New floor pans butt welded in & the welds will be ground clean. Even on a small job like this its pay attention to the details for a nice clean repair.

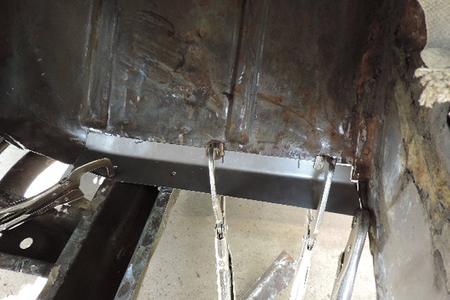

New patch made & ready to weld in.
1964 Mustang Floor Pan Replace

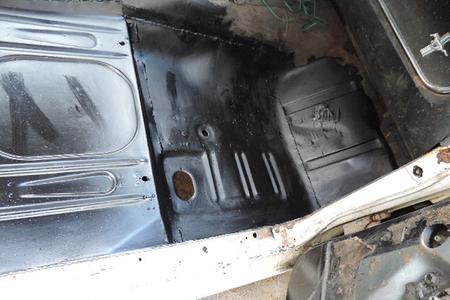

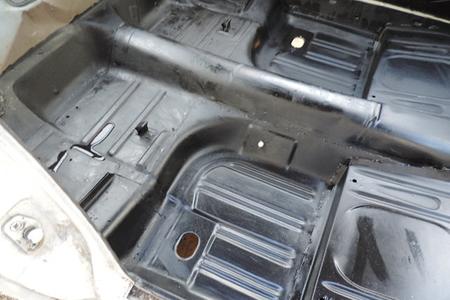

All welds ground clean now top & underside.

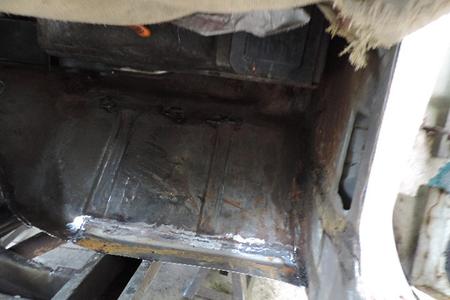

Toe board patch welded in & ground clean.

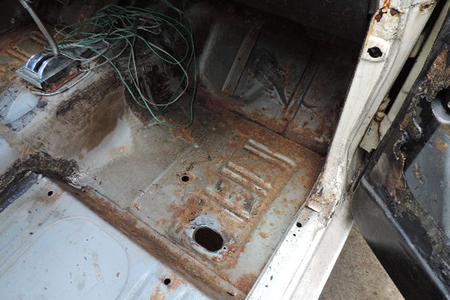

This the typical first gen Mustang floor pans have the rust mite problem time to fix them.
If you wish to discuss your current or up coming car or truck project please feel free to call Shop Phone 425 433 0294 Best Way small projects like this to major turn key builds.

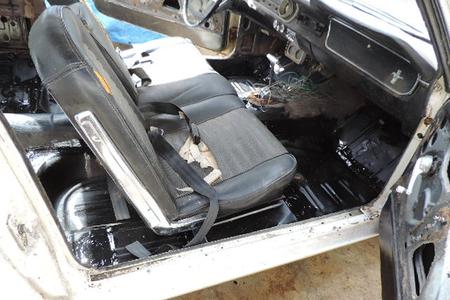

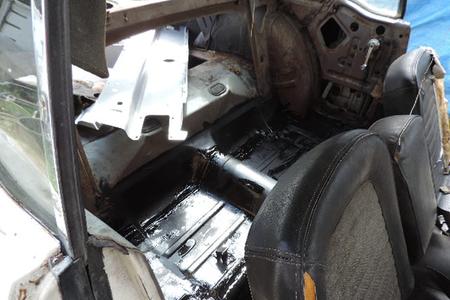

Bench seat reinstalled & ready for pick up, this car will be back later for some quarter panel & trunk floor work.

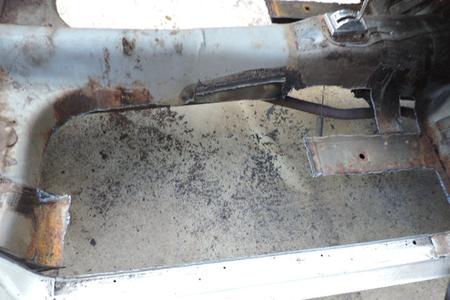

Every thing is trim & cut now ready for the new floor pans. Also the under floor braces were painted with rust preventative paint on the inside & flange edges.
The old floor pan section was carefully removed from the under side bracing & cleaned up.
Seat pans welded in.

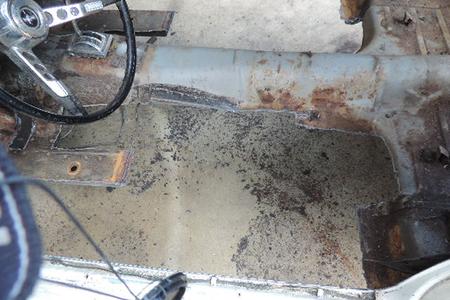

Being care full to rough cut the old out with out cutting into the floor supports.
